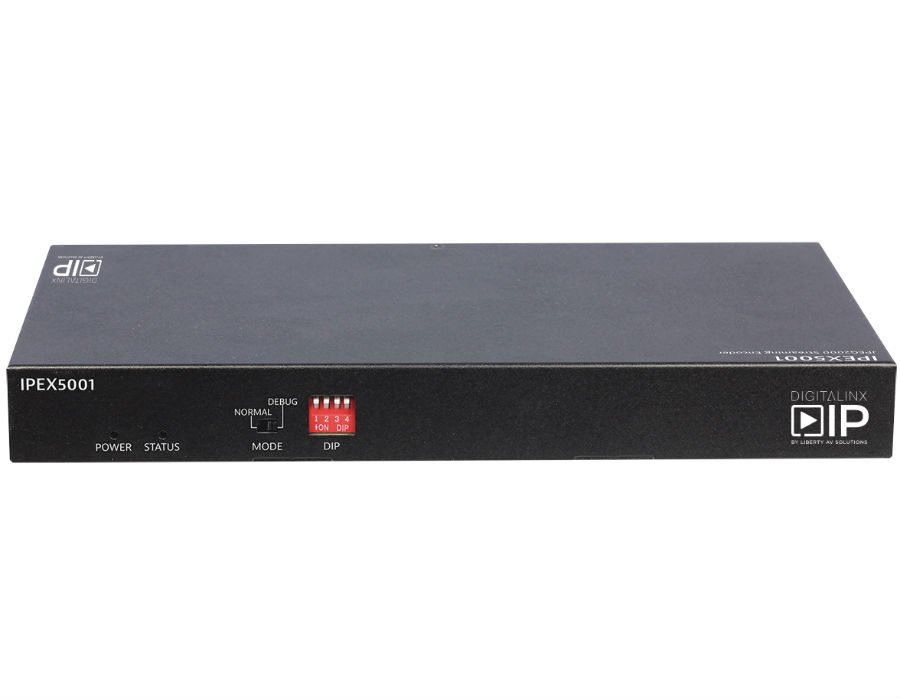

Intelix IPEX5001

The Digitalinx IP IPEX5001 transmits HDMI video and audio over a 1 gigabit network infrastructure using JPEG2000 encoding with a variable data rate at an average of 250 Mbps with peak values up to 850Mbps. The IPEX5001 supports video signals up to 4K at 60 Hz 4:2:0 / 8 bit color with HDR10, HDCP 2.2 and multichannel audio support. An analog audio input port embeds analog audio with the video content, such as a DVI video source. An analog audio output port de-embeds stereo 2 channel audio from the HDMI content, while still passing stereo 2 channel audio to the HDMI output.

The IPEX5001 supports PoE power and can be powered remotely via PoE network switch eliminating the need for a nearby power outlet. The RS232 port relays commands from the IPEXCB controller and operates in a pass through mode to control a third party device such as a TV display or HDMI switcher. The USB host port connection is for connecting USB host devices such as a computer that is USB 2.0 Full Speed compliant up to 12Mbps that can communicate with client side devices connected to a decoder. USB routing follows the video route by default however USB communication can be free routed via API. The IPEX5001 features bi-directional IR support which follows the video route or can be routed freely via API command.

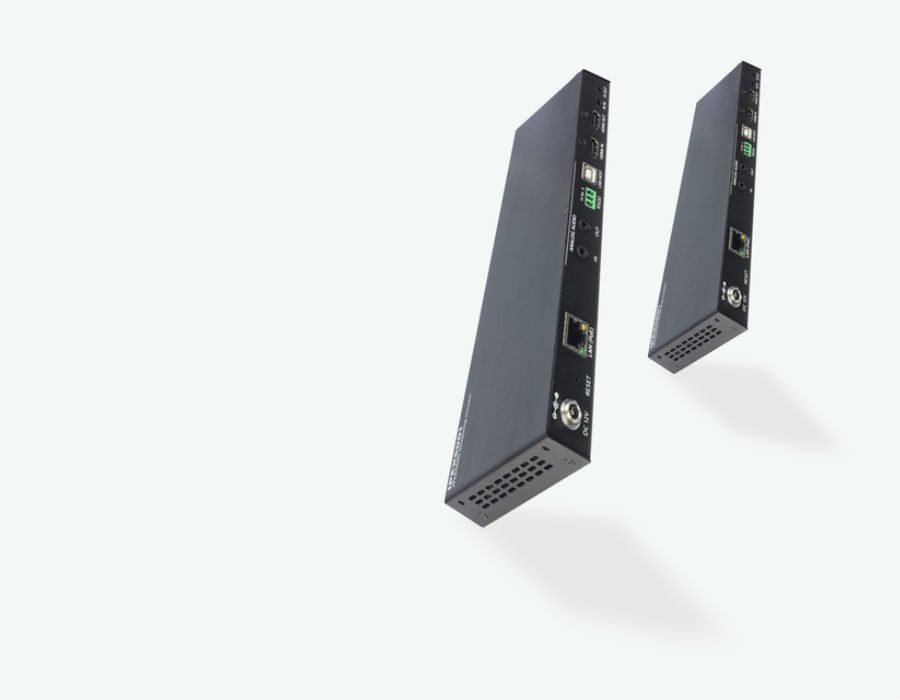

The IPEX5001 requires a single IPEX5002 for a point to point installation. When multiple IPEX5001 and/or IPEX5002 devices are in a system, an IPEXCB interface will be required.

HDMI video and audio over a gigabit IP network using JPEG2000 encoding
Video signals up to 4K HDR (static) with HDCP 2.2 and 7.1 multichannel audio
Analog audio input & output ports embed & de-embeds audio for local use or extension of embeded audio
Supports PoE and can be powered remotely
RS232 port relays commands from the IP controller and operates in a pass-through capacity
IR in and out for 2 way IR control
USB connection passes keyboard and mouse signals from decoder to encoder
Up & Down scaling capability up to 4K
Supports video walls up to 16×16 with bezel compensation
Free 3rd party control drivers available for download
