Atlona AT-HDR-EX-100CEA-KIT

Atlona AT-HDR-EX-100CEA-KIT

The AT-HDR-EX-100CEA-KIT is part of the Atlona EX Series of HDBaseT extenders. See below for a complete listing of transmitters, receivers, and extender kits.

• 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats
• HDCP 2.2 compliant
• HDBaseT^TM extender kit for HDMI^®, Ethernet, power, and control up to 330 feet (100 meters)
• Receiver powered by transmitter via PoE (Power over Ethernet)
• Extends RS-232, IR, Ethernet, and CEC control signals over HDBaseT
• Delivers return audio from a TV via dedicated HDBaseT audio return path
• HDBaseT link status testing

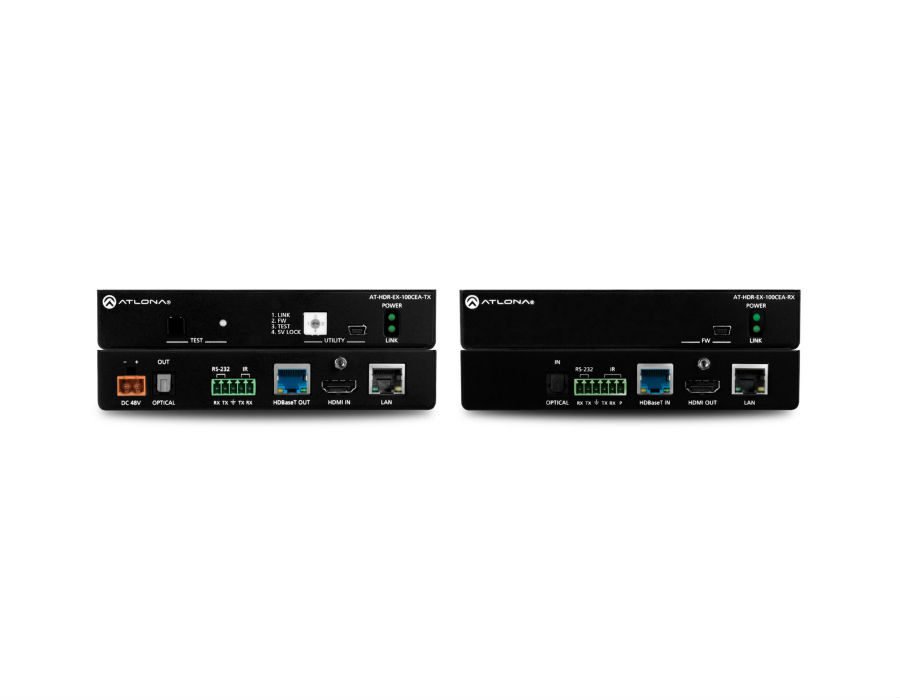

The Atlona AT-HDR-EX-100CEA-KIT is an HDBaseT transmitter/receiver kit for high dynamic range (HDR) formats.The kit is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR-EX-100CEA-KIT provides transmission of HDMI, Ethernet pass-through, and bidirectional IR and RS-232 control signals up to 330 feet (100 meters) over CAT6a/7 cable. This extender kit features
visually lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT. For additional integration convenience, the transmitter remotely powers the receiver through Power over Ethernet (PoE). The HDR-EX-100CEA-KIT can transmit digital audio from a television back to an AV receiver, via a dedicated audio pathway. The HDR-EX-100CEA-KIT is ideal for residential and commercial applications with the latest as well as emerging 4K/UHD and HDR sources and displays. It is compatible with all video resolutions, audio formats, and color space
formats supported in the HDMI 2.0b specification, plus the ability to pass metadata for HDR content. The HDR-EX100CEA-KIT includes Atlona’s award-winning 10 year limited product warranty and customer support services, so that integrators can specify, purchase, and install with confidence. Introduction

Applications

• Residential installations
The HDR-EX-100CEA-KIT is designed for AV systems with the latest UHD and HDR sources such as Ultra HD
Blu-ray players, plus compatible televisions and projectors.
• TV showrooms
The HDR-EX-100CEA-KIT can be used for reliable content transmission to televisions, to properly demonstrate
the quality and appeal of 4K and HDR programming.
• Professional AV applications
Atlona 4K HDR products are ideal for full-motion, highly detailed 4K graphics presentations for visualization, 3D
renderings, simulations, and more.
