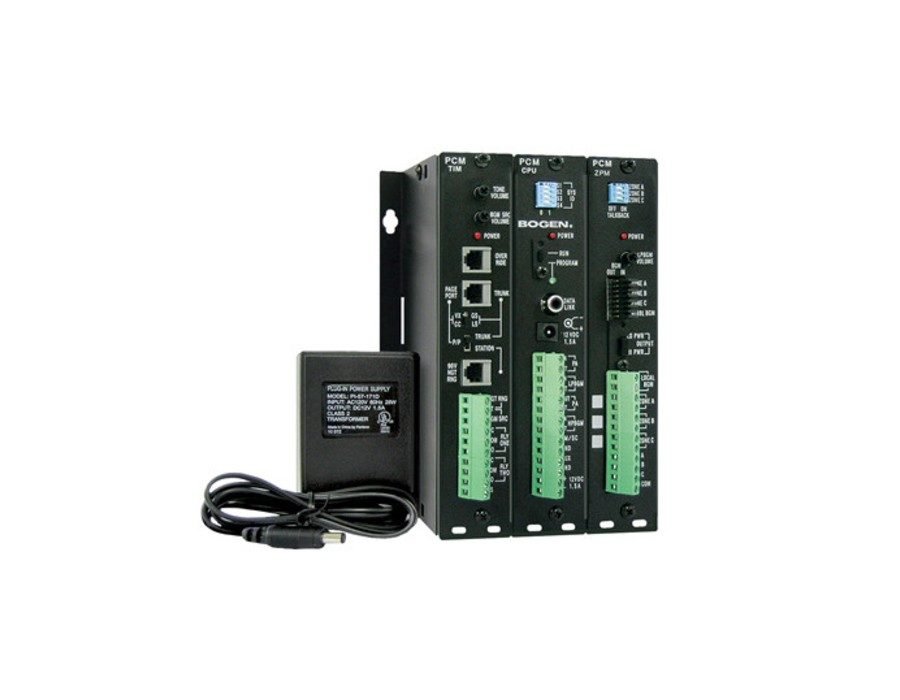

Bogen PCMTBM

Bogen PCMTBM Talk Back Module

The Bogen PCMTBM talkback applications module is designed for the Bogen PCM2000 Zone Paging System.The PCMTBM is used with a high-power central amplifier to provide talkback paging in zones with passive speakers.The module is equipped with controls to adjust talkback volume and talkback delay. A noise reduction switch mutes background noise when no audio activity is present in the zone.

The PCMTBM is the talkback applications module for the Bogen PCM2000 Zone Paging System. The PCMTBM is used with a high-power central amplifier to provide talkback paging in zones with passive speakers. The module is equipped with controls to adjust talkback volume and talkback decay. A noise reduction switch mutes background noise when no audio activity is present in the zone.

The PCMZPM zone module has TALKBACK dip switches which must be properly set in order to use the PCMTBM module. See the instructions supplied with the PCMZPM module for further information.

The PCMTBM Talk Back Module from Bogen can provide hands-free talkback capability with the PCM2000. One module will provide talkback regardless of how many zones or satellite systems are on the PCM2000 system. Controls are available for volume and switching delay control.

Universal analog telephone interface designed for direct connection to loop start and ground start trunks, to PBX or KEY paging ports which supply DTMF capability, and to analog T/R lines, Modular integration assures reconfiguring and expansion with minimum time and expense, Optional talkback paging and time-triggered signaling events with PCMTBM module.

The Bogen Model PCMTBM is the talkback applications module for the Bogen PCM2000 Zone Paging System.The PCMTBM is used with a high-power central
amplifier to provide talkback paging in zones with passive speakers.The module is equipped with controls to adjust talkback volume and talkback delay.A noise reduction switch mutes background noise when no audio activity is present in the zone. The PCMZPM zone module has TALKBACK dip switches which must be properly set in order to use the PCMTBM module. See the instructions supplied with the PCMZPM module for further information.

When using the PCMTBM module, connect the central amplifier input to PA IN & RT terminals, and amplifier output to PA OUT & RT terminals. See the illustration on page 3. The central amplifier should have no connections to the PCMCPU module when using this talkback module.
