Bogen UTI312
$14,619.00
CONTROLADOR DE PAGINACIÓN DE ZONAS MÚLTIPLES
PRESENTACIÓN: PIEZA
Disponible para reserva
Bogen UTI312

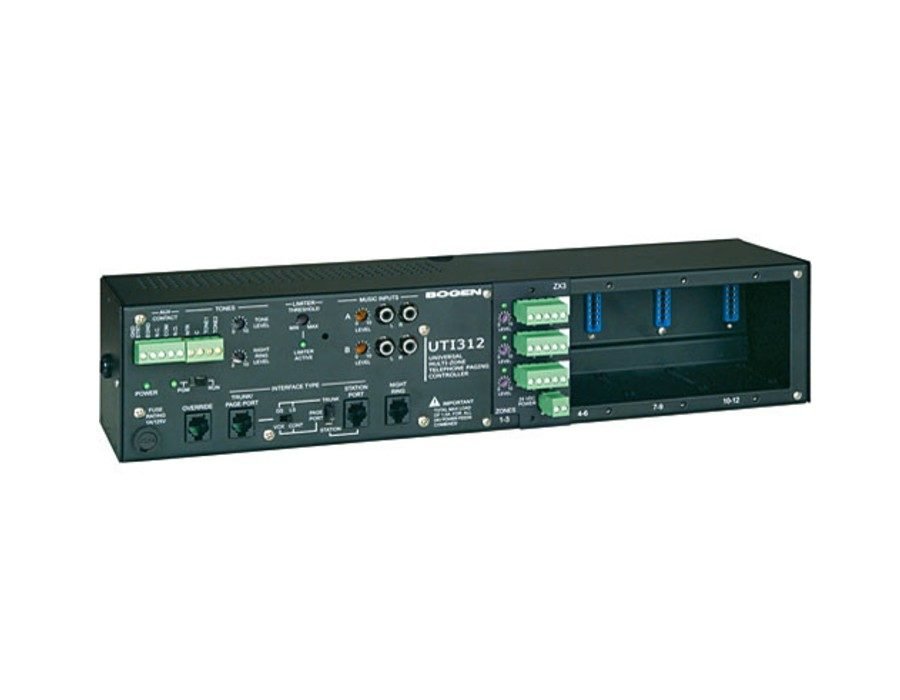

Bogen UTI312 Multi-Zone Universal Telephone Interface
The Bogen Communications UTI312 Multi-Zone Paging Controller is a multi-zone paging and signaling system designed for 70V installations in commercial retail spaces, offices, schools, wharehouses and medical facilities, etc. The modular design features expansion bays that accommodate Bogen ZX3 modules. Each ZX3 supports up to three zones and the UTI312 is capable of up to 12 zone operations with all four ZX3 modules installed.
The UTI312 is compatible with all standard analog port types. Each UTI312 comes with a pre-installed ZX3 module for three zones of paging and is expandable up to 12 zones. The UTI312 offers up to 24 programmable paging zone groups as well as all-call, auto select, override, night ring, two tone triggers, and code calling zone groups.The UTI312 also offers flexible dialing.
- Expandable from 3 to 12 zones (in 3-zone increments using ZX3 modules)
- One-way paging only
- Interfaces to Loop Start, Ground Start, Analog Station, and Page Ports
(with or without contact closure activation) - 2 Background music (BGM) inputs
- BGM sources assignable per zone
- Level control for each zone output
- 150 Speaker T/R drive capacity per zone
- Programmable AUX Relay
- Override input (loop start or page port)
- Separate override, all-call, tone trigger, night ring, and code call zone groups
- Contact and 90V Night Ring inputs
- 24 User-assignable zone groups
- FCC Part 68 Registered
